VPS provides end-to-end range of ultrasonic cleaning machines which are highly effective for various levells of cleaning. Serving industires for Aerospace, Automotive and Opthalmic many more for small to medium size components. Including engine parts, pistons, crankshafts, cylinder heads, heat exchangers, valve spindles etc.

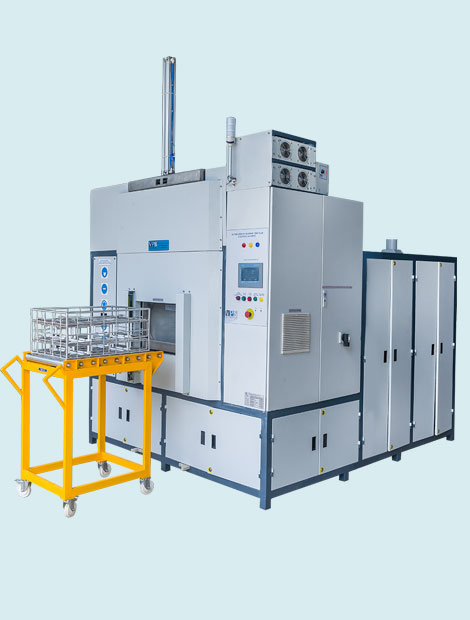

Ultrasonic cleaning system -Front Load-100/50
- A smart solution for cleaning of engine parts.
Two versions available.
- Surrounding transducer set-up ensures high effectivity compared to submersible solutions
- Internal dimensions: 1000 x 1000 / 1500 x 1000 mm
- The powerful generator system offers a patented frequency sweep for uniform and intense cavitation
- Transducers made of high quality phosphor-bronze/ silver construction in order to minimise heat build up
- Oil skimmer available as option
Component Basket | Rotating Basket Size 650L * 450W *300 H *Circular Frame rotates @ 360°, at a speed of 3 to 6 rpm
*Additionally, Stall position &/Or Oscillation feature may be provided, as Optional |
Component Weight | Maximum weight capacity is 100 Kgs (including the weight of the Baskets & holding devices) |
Ultrasonic Power | 1200 w & 2 No's |
Working Chamber | Machine Cleaning Chamber is made ,SS304 Outer Size 750 L * 700 W * 700 H mm |
Operatint Temperature | Ultrasonic Tank Operating Temparature 60-100°C |
Power Supply | 40kW to 60kW, AC 380 – 415 V, 50/60 Hz, 3 ph |
Sump Tanks | Standard: 2 Tanks, Option: As required for process |

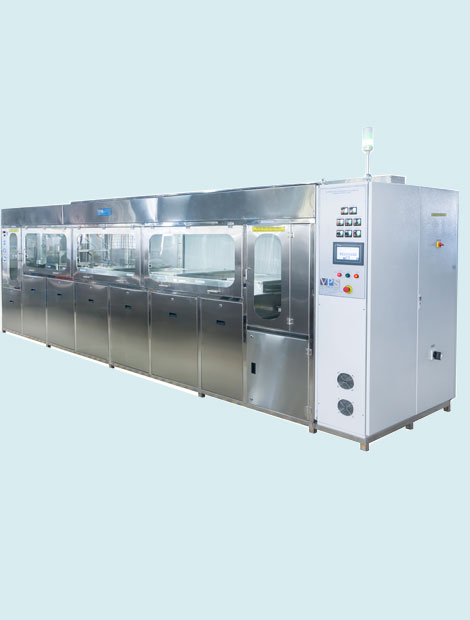

Ultrasonic Cleaning System - T-100/50
Offers a solution to larger industrious cleaning requirements, including the cleaning of engine parts like intercoolers, valve spindles, fuel injectors, cylinder heads, pistons and heat exchangers.
Ultrasonic 4600 is electronically driven and has 112 PZT transducers generating ultrasound waves.
The conical transducers are made of high-quality alloyed V4A stainless steel.
Component Basket | Rotating Basket Size 450L * 300W *200 H *Circular Frame rotates @ 360°, at a speed of 3 to 6 rpm
*Additionally, Stall position &/Or Oscillation feature may be provided, as Optional
|
ROTATING PARTS CARRIER: Max weight capacity over the carrier = 50 Kg |
Ultrasonic Power | 1.2 Kw & 2 No's |
Working Chamber | Machine Cleaning Chamber is made ,SS304 Outer Size 550 L * 450 W * 500 H mm |
Operatint Temperature | Ultrasonic Tank Operating Temparature 60-100°C |
Power Supply | 30kW to 45 kW, AC 380 – 415 V, 50/60 Hz, 3 ph |
Sump Tanks | Standard: 2 Tanks, Option: As required for process |

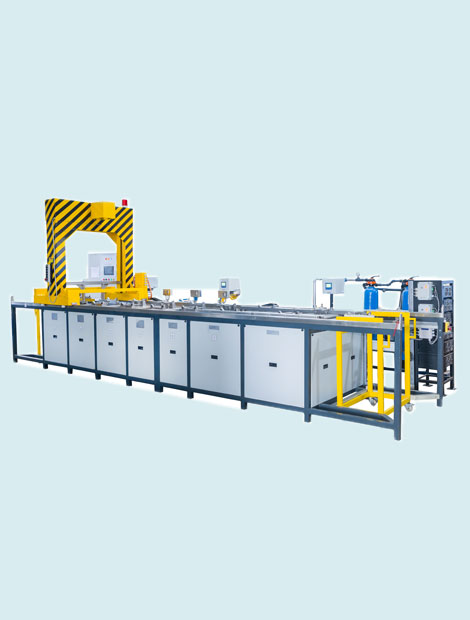

Ultrasonic Cleaning System - 5 stage and 7 stage
Two-tank set-up for diverse cleaning enabling separate washing methods
Hard Anodize for Aerospace Components & Precision Machined Components
Sulfuric Acid Anodizing for Optical & Opthalmic
Electrolytic 2-Step Anodizing for Medical Parts
Environmentally friendly cleaning compared to conventional chemical cleaning liquids Extends lifetime of cleaned parts
Component Basket | TANK Size : Custom Specification : 10 Liter to 1000 Liter RACK or BARREL TYPE BASKET |
Component Weight | 50 Kgs to 500 Kgs |
Ultrasonic Power | 100 W to 3000 W |
Operatint Temperature | Ultrasonic Tank Operating Temparature 60-100°C |
Power Supply | 30kW to 45 kW, AC 380 – 415 V, 50/60 Hz, 3 ph |
Sump Tanks | As required for Process adapted |
VPS Excellence in Phosphating Solutions
VPS offers a large range of high quality tailor made Phosphating Solutions for ferrous metals
